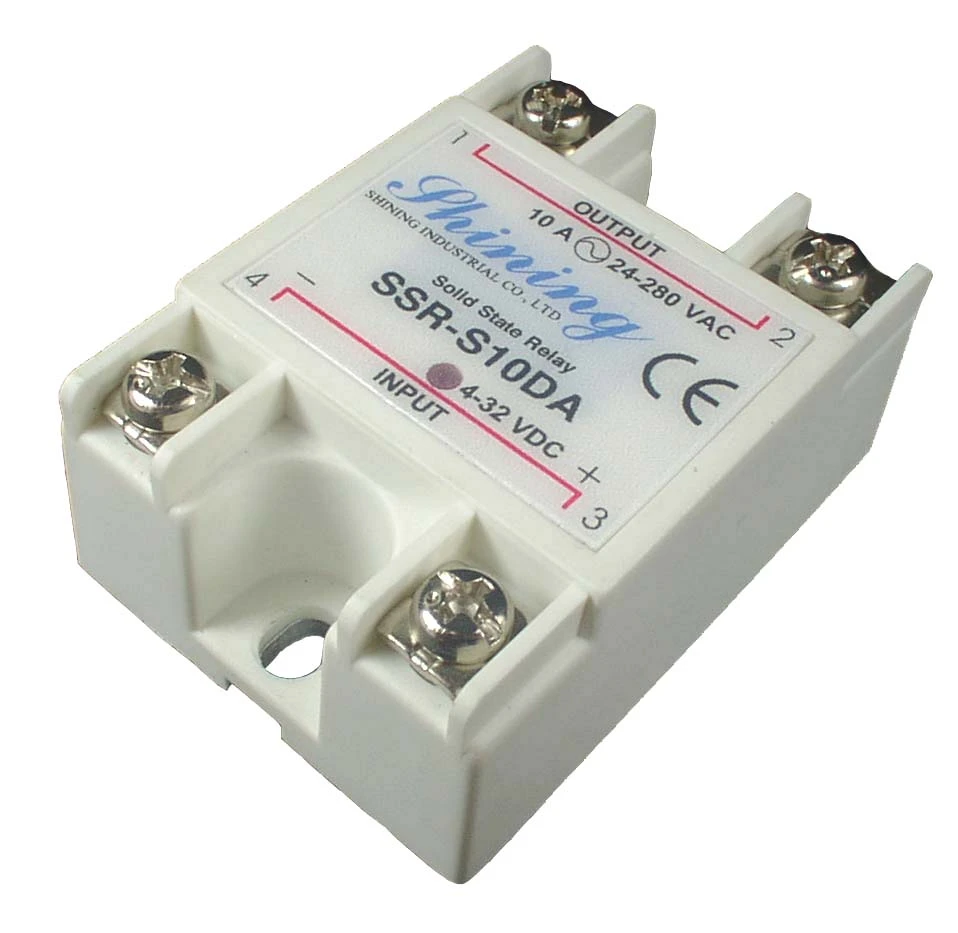

SSR-S10DA DC to AC 單相固態繼電器
1. 輸入控制電壓: 4~32 VDC
2. 最大負載電流: 10A
3. 輸出負載電壓: 24~280 VAC
4. 最低破壞電壓: 600V
5. 切換型式: 零點觸發
6. 隔離阻抗: 50MΩ/500 VDC
7. 可安裝固定在面板上
8. LED燈狀態顯示
9. 附透明防塵蓋或可另外提供保護上蓋供選購
10. 經UL 與 cUL 認可. File No. E301692, 產品符合CE規定
11. 可廣氾應用於各種接線場合, 例如: 配電盤, 控制面板, 變壓器, 機械設備, 不斷線系統, 發電機組, 冷凍空調, 電池組, 照明設備, 船舶飛機等等
12. 網址 : http://www.shining.com.tw/2CT/CT_ssr_single_phase_dc_to_ac.htm
SSR-S10DA DC to AC Solid State Relay Module
• Item number: SSR-S10DA
• Output Load Current: 10A
• Output Load Voltage Range: 24~280VAC
• Operate InputCurrent: 4~32VDC
• 600V Transient Capability
• Low EMI/EFI & Surge by zero cross trigger control.
• High Isolation over than 50MΩ/500VDC
•Panel Mounting
• LED Input status Indicator
• Integrated with removable tinger-proof cover SSR-S-CV • Fast reaction, high reliability and long life
• No switching speaks, no noise, and no contact points.
• Excellent for switching control of switchboard panel, heaters, printers, machines, UPS
• UL and cUL Approval. File No. E301692. CE Compliant.
• Packing: 100pcs/ctn, N.W. :11.6kgs /carton
