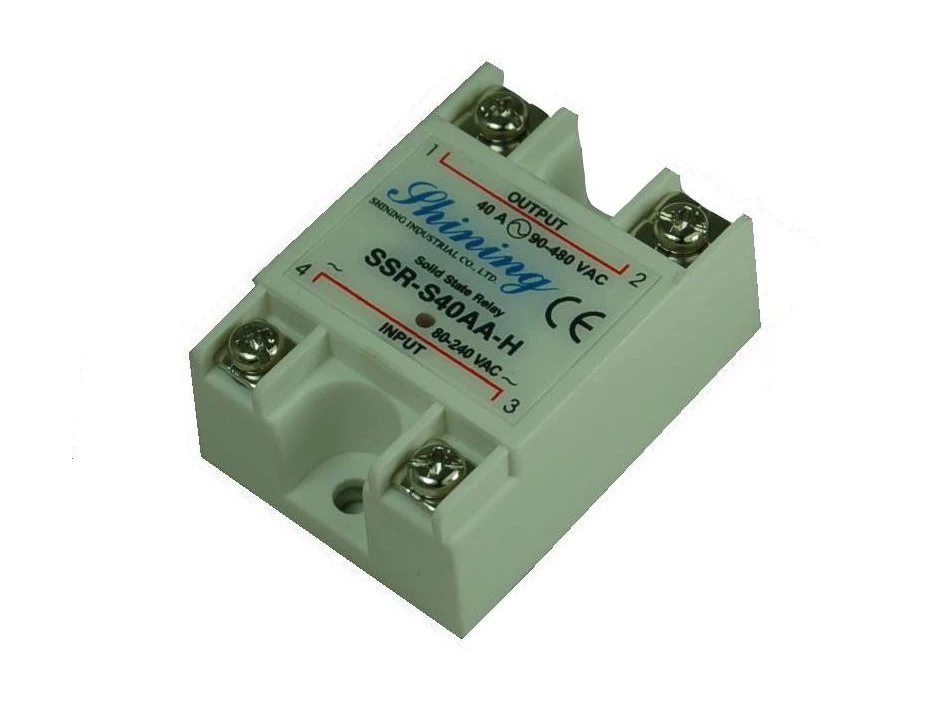

SSR-S40AA 單相固態繼電器 SSR
輸入控制電壓: 80~240VAC
最大負載電流: 40A
輸出負載電壓: 24~280 VAC
最低破壞電壓: 600V
切換型式: 零點觸發
隔離阻抗: 50MΩ/500 VDC
可安裝固定在面板上 LED燈狀態顯示附透明防塵蓋或可另外提供保護上蓋供選購經UL 與 cUL 認可. File No. E301692, 產品符合CE規定可廣泛應用於各種接線場合, 例如: 配電盤, 控制面板, 變壓器, 機械設備, 不斷線系統, 發電機組, 冷凍空調, 電池組, 照明設備, 船舶飛機等等 Operating input voltage: 80~240 VAC Output Load Current rating: 40A (10A, 25A, 40A available) Output Voltage from 24~280 VAC (90~480 VAC available as well) 600V Transient Capability Low EMI/EFI & Surge by zero cross trigger controlHigh Isolation over than 50MΩ/500VDC Panel Mount LED input status indicator Integrated with removable finger-proof cover SSR-S-CV Fast reaction, high reliability and long life No switching sparks, no noise, and no contact points Excellent for switching control of switchboard panel, heaters, printers, machines, UPS, light signals and similar applications. UL and cUL approved. File No. E301692, CE compliant
