TC-652-A 陶瓷端子台
1. 額定電流: 65安培 (共有15安培~65安培可供選購)
2. 額定電壓: 600伏特
3. 外觀尺寸: 32.9*29.2*22.0mm (長*寬*高)
4. 適用導線: 16.0mm2 / AWG #14-6
5. 螺絲大小: M4
6. 電極數: 2 Pole
7. 陶瓷本體設計可耐高溫
8. 可廣氾應用於各種接線場合, 例如: 配電盤, 控制面板, 變壓器, 機械設備, 不斷線系統, 發電機組, 冷凍空調, 電池組, 照明設備, 船舶飛機等等
9. 品質優良
10. 價格具競爭力
11. 快速供貨
12. 滿意的服務
13. 網址 : http://www.shining.com.tw/2CT/CT_terminal_blocks_ceramic.htm

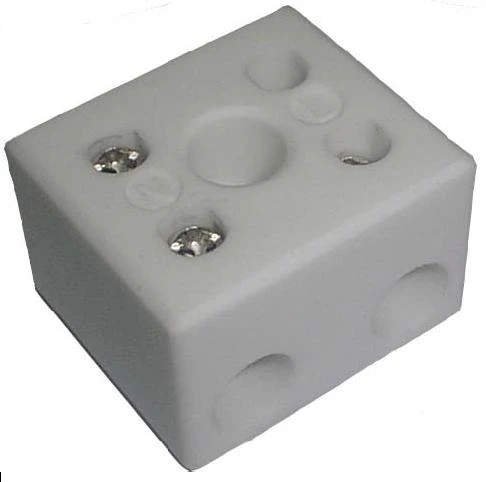

TC-652-A Ceramic Terminal Block
1. Item number: TC-652-A
2. Rating: 600V, 65A, 2P
3. Size: 32.9*29.2*22.0mm (L*W*H),
4. Wire Size: 16.0 mm2 / AWG 14-6
5. Screw Size: M4
6. Suitable for use in high temperature applications up to 250oC
7. Secure fixed design.
8. Panel Mounting or free floating. Mounting holes are furnished at each end of the block.
9. Marking paper strips and protective covers are available.
10. Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar applications.
11. Packing: 50pcs/box, 200pcs/4boxes/N.W. :10.0kgs /carton
