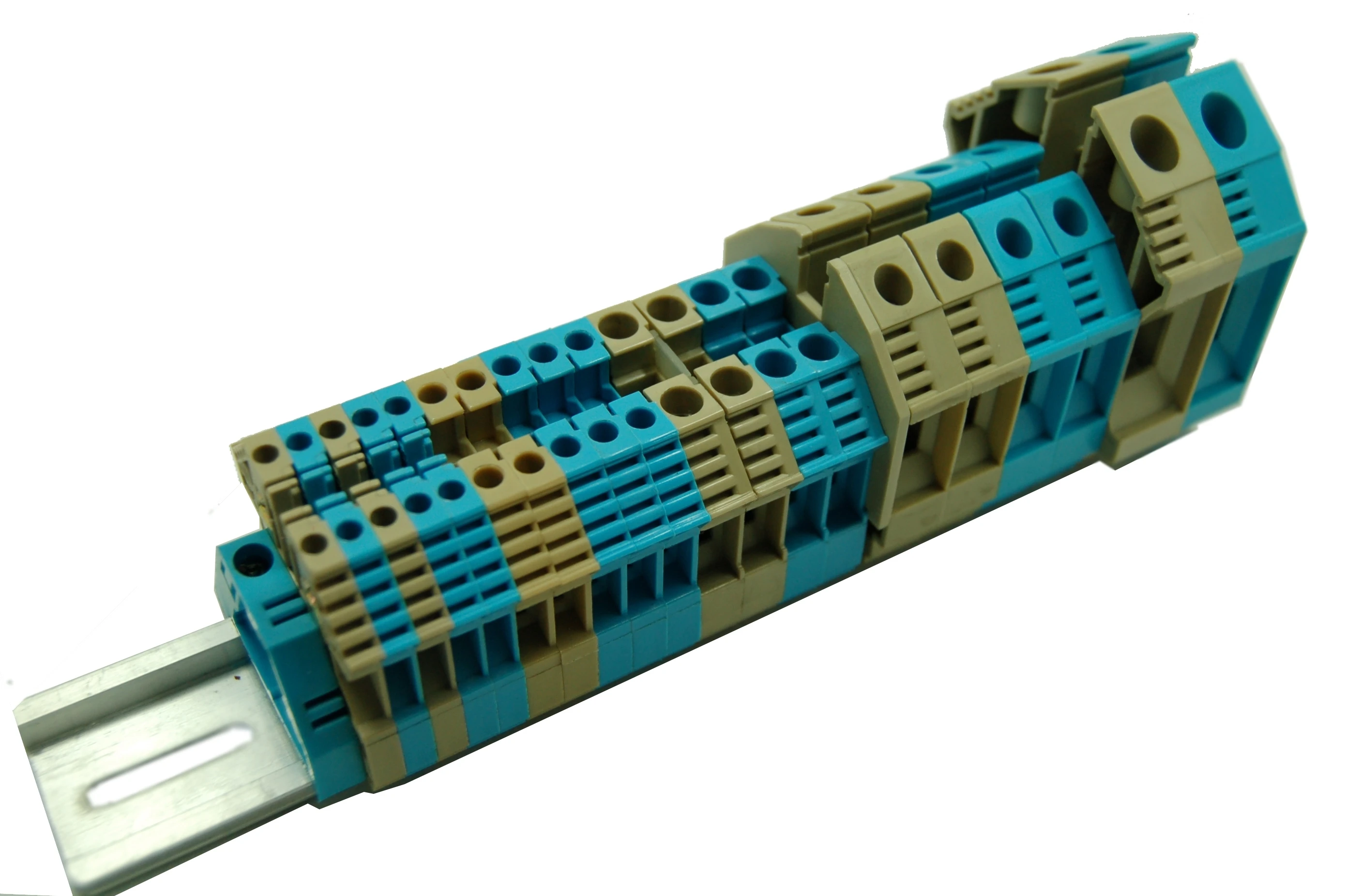

TF-35 歐規端子台

TF-35 歐規端子台

1. 額定電流: 110安培 (共有17安培~110安培可供選購)
2. 額定電壓: 600伏特
3. 外觀尺寸: 58*16*71mm (長*寬*高),
4. 適用導線: 35mm2(多股)/ 50 mm2 (單股)
5. 塑膠本體採用耐衝擊與防火耐燃等級UL94-V2的工程塑膠原料來製造
6. 組合式設計可依客戶需要而結合邊蓋組裝成任意電氣迴路數
7. 可安裝固定在35mm寬的軌道上
8. 附有碼標紙條供電路標示或書寫
9. 可廣氾應用於各種接線場合, 例如: 配電盤, 控制面板, 變壓器, 機械設備, 不斷線系統, 發電機組, 冷凍空調, 電池組, 照明設備, 船舶飛機等等
10. 符合歐盟之RoHS有害物質限用的指令
11. 品質優良
12. 價格具競爭力
13. 快速供貨
14. 滿意的服務
15. 網址 : http://www.shining.com.tw/2CT/CT_terminal_blocks-Euro_TF.htm

TF-35 Feed Through Terminal Block Connector

•Item number: TF-35

•Rating: 600V, 110A

•Size: 58.0*16.0*71.0mm (L*W*H),

•Wire Size: 35.0 mm2 (Stranded)/ 50.0 mm2 (Solid)

•Molded from UL94-V0 material with excellent flame- and shock-resistance

•High-density design features screw-cage clamps for reliable connections

•Compact and convenient to use where space is a constraint.

•Cost effective sectional design allows for changung requirements.

•Order preassembled or easily smap together single pole to form mulitpole assembly.

•Standard 35mm DIN Rail Mounting is available.

•Marking paper strips and protective covers are available.

•Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar applications.

•Packing: 100pcs/box, 400pcs/4boxes/N.W. :21.8kgs /carton
