TGP-085-05A 配電端子台
1. 額定電流: 85安培 額定電壓: 600伏特
2. 電路數:5
3. 外觀尺寸: 116.8*41*33.2mm (長*寬*高), 4.598”*0.63”*1.307” (L*W*H)
4. 適用導線: 22mm2 / AWG 2-14
5. 螺絲大小:內六角凹端緊定螺釘5/16-24
6. 塑膠本體採用耐衝擊與防火耐燃等級UL94-V2的工程塑膠原料來製造
7. 可廣氾應用於各種接線場合, 例如: 配電盤, 控制面板, 變壓器, 機械設備, 不斷線系統, 發電機組, 冷凍空調, 電池組, 照明設備, 船舶飛機等等
8. 符合歐盟之RoHS有害物質限用的指令
9. 品質優良
10. 價格具競爭力
11. 快速供貨
12. 滿意的服務
13. 網址 : http://www.shining.com.tw/2CT/CT_terminal_blocks-power_TGP-085.htm

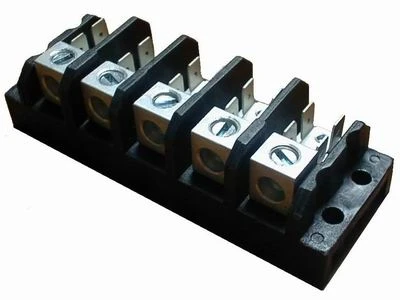

TGP-085-05A Power Distribution Terminal Block
•Item number: TGP-085-05A
•Rating: 600V, 85A, 5P
•Size: 116.8x41.0x33.2mm (LxWxH)
•Screw Size: Hexagon Socket Set Screw, 5/16-24
•Wire Size: 22.0mm2 / AWG 14-2
•Molded from UL94-V2 material with excellent flame- and shock-resistance
•Secure fixed design. 2-8 poles with (4) .250" quick connect terminals per pole
•Hexagon Socket Set Screw 5/16-24 or Slotted Set Screw 5/16-24 available
•Panel Mounting or free floating. Mounting holes are furnished at each end of the block.
•Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar applications.
•UL/cUL Approved. File No. E257927
•Packing: 200pcs/N.W. :25.1kgs /carton
