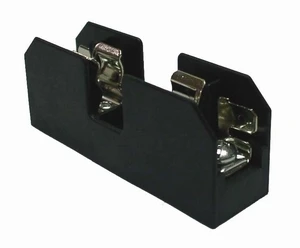

FB-M031SQ 30A 10x38 保險絲座
1. 額定電流: 30安培 額定電壓: 600伏特
2. 電極P數:1 (共有1~3P可供選購)
3. 外觀尺寸: 3.00”*0.827”*1.193”或 76.2*21.0*30.3mm (長*寬*高),
4. 適用導線: AWG 10~22
5. 螺絲大小: M5
6. 塑膠本體採用耐衝擊與防火耐燃等級UL94-V2的工程塑膠原料來製造
7. 可安裝固定在面板上或是35mm寬的軌道上
8. 可廣氾應用於各種接線場合, 例如: 配電盤, 控制面板, 變壓器, 機械設備, 不斷線系統, 發電機組, 冷凍空調, 電池組, 照明設備, 船舶飛機等等
9. http://www.shining.com.tw/2CT/CT_fuse_blocks_FB-M031SQ.htm
FB-M031SQ 10X38 30A Midget Fuse Block
•Item number: FB-M031SQ
•Rating: 600V, 30A, 1P
•Size: 76.2x21.0x30.3mm (LxWxH)
•Screw Size: M5
•Wire Size: AWG 22-10
•Molded from UL94-V2 material with excellent flame- and shock-resistance
•Suitable for 10x38mm(13/32") fuse
•Designed with (2) screw terminal and (4) .250” quick-connect terminals per pole.
•Panel Mounting or standard 35mm Din Rail Mounting available.
•Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar applications.
•UL and cUL recognized. File No. E300304
