TE-010 軌道組合式端子台
1. 額定電流: 10安培 (共有10安培~400安培可供選購)
2. 額定電壓: 600伏特
3. 外觀尺寸: 8.8+6.0*38.0*25.0mm (長*寬*高),
4. 適用導線: 1.6mm2 / AWG 16
5. 螺絲大小: M3
6. 塑膠本體採用耐衝擊與防火耐燃等級UL94-V2的工程塑膠原料來製造
7. 組合式設計可依客戶需要而結合邊蓋組裝成任意電氣迴路數
8. 可安裝固定在35mm寬的軌道上
9. 附有碼標紙條供電路標示或書寫
10. 附透明防塵蓋或可另外提供保護上蓋供選購
11. 可廣氾應用於各種接線場合, 例如: 配電盤, 控制面板, 變壓器, 機械設備, 不斷線系統, 發電機組, 冷凍空調, 電池組, 照明設備, 船舶飛機等等
12. 網址 : http://www.shining.com.tw/2CT/CT_terminal_blocks_TE.htm

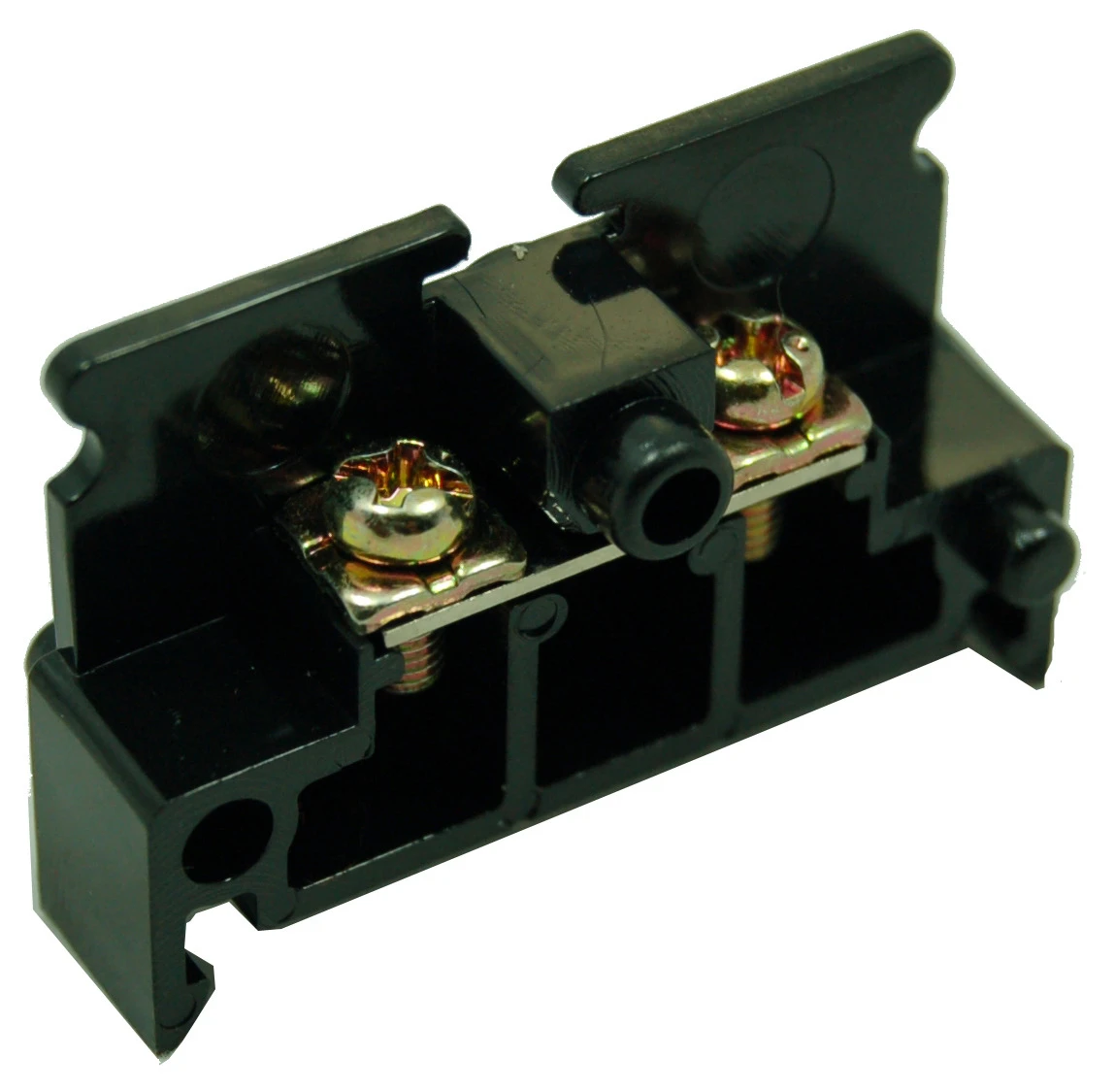

TE-010 Din Rail Assembly Terminal Block
•Item number: TE-010
•Rating: 600V, 10A
•Size: 8.8+6.0*38.0*28.0mm (L*W*H),
•Wire Size: 1.6 mm2 / AWG 16
•Screw Size: M3
•Molded from UL94-V2 material with excellent flame- and shock-resistance
•Sectional or one-piece construction. Easy and Flexible to form multipole assembly.
•Standard 35mm Din Rail Mounting is available.
•Marking paper strips and protective covers are available.
•Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar applications.
•Packing: 200pcs/box, 2,400pcs/12boxes/N.W. :15.6kgs /carton
