SSR-T40DA 三相固態繼電器
輸入控制電壓: 4~32 VDC
最大負載電流: 40A
輸出負載電壓: 24~280 VAC
最低破壞電壓: 600V
切換型式: 零點觸發
隔離阻抗: 50MΩ/500 VDC
可安裝固定在面板上
LED燈狀態顯示
附透明防塵蓋或可另外提供保護上蓋供選購
可廣泛應用於各種接線場合, 例如: 配電盤, 控制面板, 變壓器, 機械設備, 不斷線系統, 發電機組, 冷凍空調, 電池組, 照明設備, 船舶飛機等等.
http://www.shining.com.tw/2CT/CT_ssr_three_phase_dc_to_ac.htm

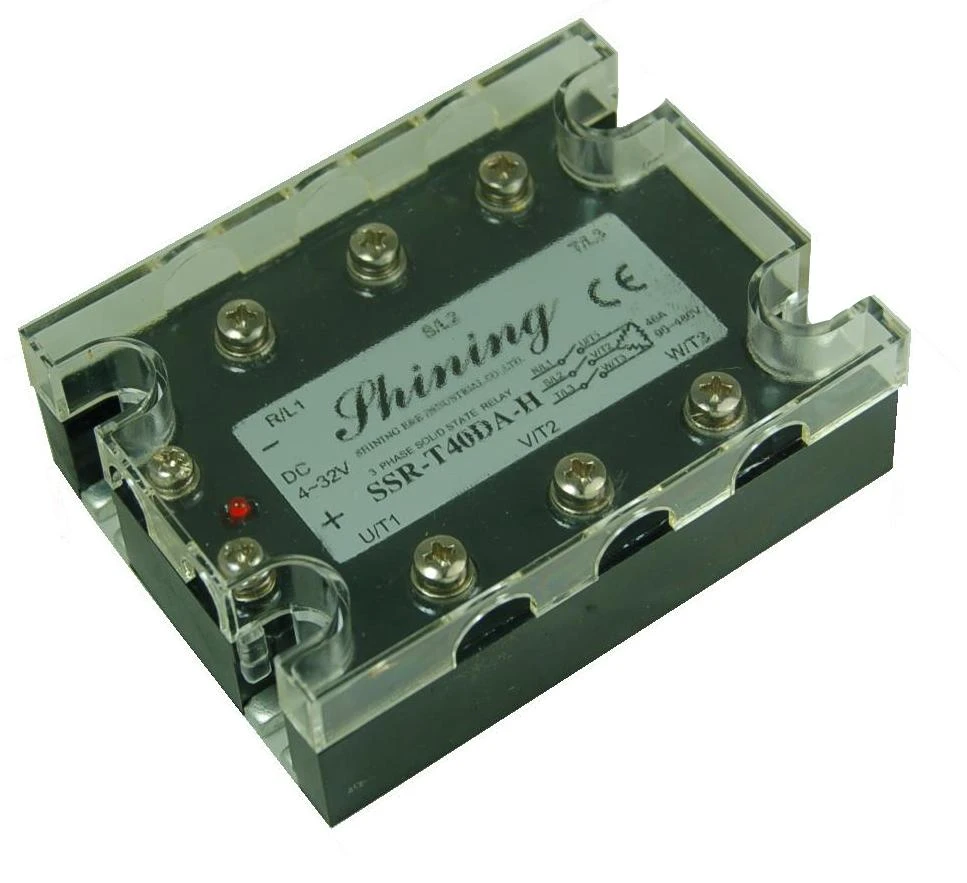

SSR-T40DA DC to AC Three Phase Solid State Relay
•Item number: SSR-T40DA
• Output Load Current: 40A
• Output Load Voltage Range: 24~280VAC
• Operate Input Current: 4~32VDC
• 600V Transient Capability
• Low EMI/EFI & Surge by zero cross trigger control.
• High Isolation over than 50MΩ/500VDC
•Panel Mounting
• LED Input status Indicator
• Integrated with removable tinger-proof cover SSR-T-CV • Fast reaction, high reliability and long life
• No switching speaks, no noise, and no contact points.
• Excellent for switching control of switchboard panel, heaters, printers, machines, UPS
• CE Compliant.
• Packing: 30pcs/ctn, N.W. :13.3kgs /carton
