FS-016B 6x30 10A 保險絲座
1. 額定電流: 10安培 額定電壓: 600伏特
2. 電極P數:6 (共有1~8P可供選購)
3. 外觀尺寸: 58.5*90*25mm (長*寬*高),
4. 適用的保險絲規格:6x30 mm (1/4"x1 1/4" )
5. 塑膠本體採用耐衝擊與防火耐燃等級UL94-V2的工程塑膠原料來製造
6. 組合式設計可依客戶需要而結合邊蓋組裝成任意電氣迴路數
7. 可安裝固定在面板上或是35mm寬的軌道上
8. 附有碼標紙條供電路標示或書寫
9. 附透明防塵蓋或可另外提供保護上蓋供選購
10. 可廣氾應用於各種接線場合, 例如: 配電盤, 控制面板, 變壓器, 機械設備, 不斷線系統, 發電機組, 冷凍空調, 電池組, 照明設備, 船舶飛機等等
11. http://www.shining.com.tw/2CT/CT_fuse_blocks_FS-011B.htm

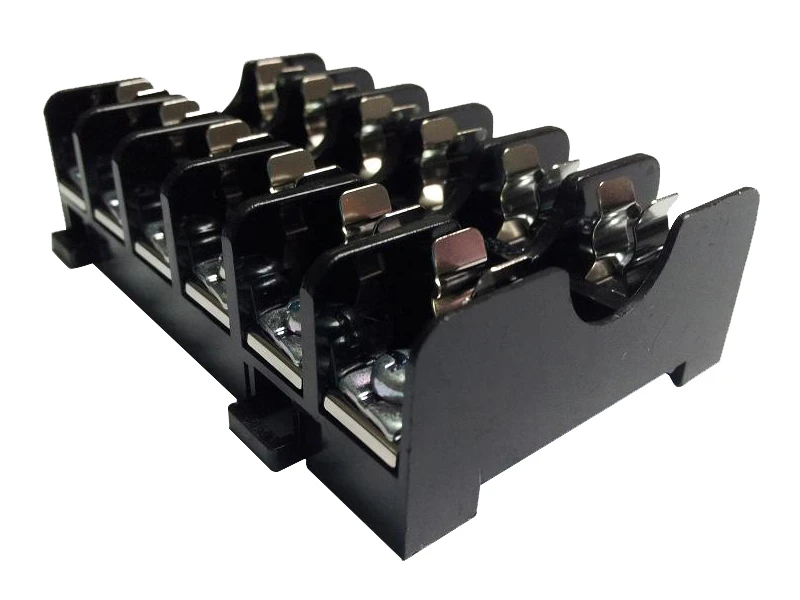

FS-016B 6x30 10A Fuse Holder Block
•Item number: FS-016B
•Rating: 600V, 10A, 6P
•Size: 58.5x90.0x25.0mm (LxWxH)
•Molded from UL94-V2 material with excellent flame- and shock-resistance
•Suitable for 1/4"x1 1/4"(6.3X32mm) fuse
•Designed with (2) screw terminal per pole.
•Panel Mounting or standard 35mm Din Rail Mounting available.
•Protective Cover with fuse indicators and Din Rail Adapters are available.
•Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar applications.
•Packing: 20pcs/ctn, 200pcs/10box, N.W. :16.2kgs /carton
